TTC Nihil Dustproof 80 Million Click Micro Switch

TTC Nihil Microswitch

Custom Micro Switch:

Due to the unique properties of the zinc alloy mouse button material, the demands on the micro switch are extremely high. After tens of millions of click tests, the custom "Nihil" micro switch was born. It significantly enhances the button feel of the zinc alloy mouse, fully unleashing the performance characteristics of the zinc alloy material.

Product information

• Name: TTC Nihil Micro Switch
• Brand: TTC

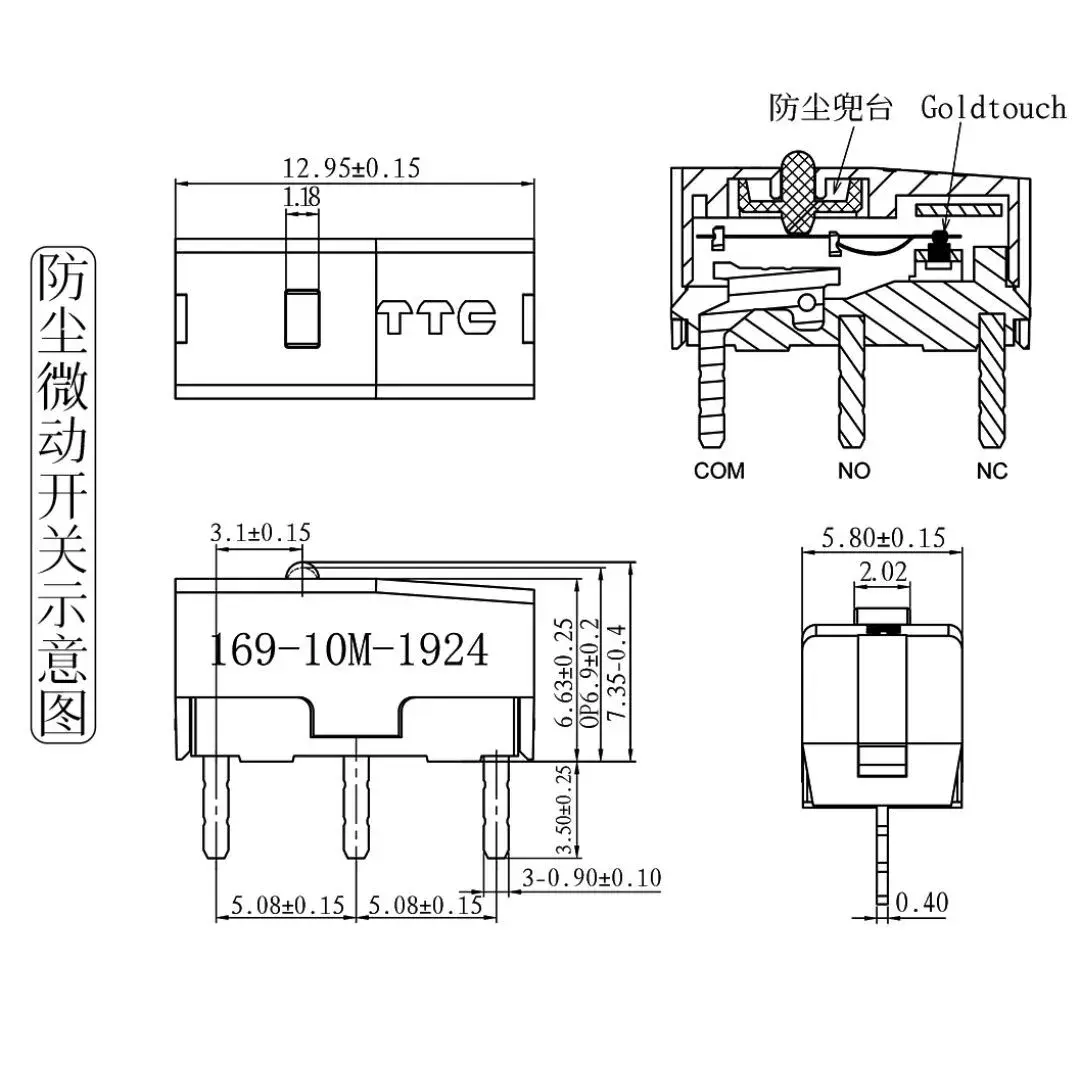

• Size: 12.95*5.8*7.35mm
• Gram force: 65±5gf
• Pin Length: 3.5mm
• Plunger Idle Height: 7.35mm
• Plunger Actuate Height: 6.9mm
• Actuation: 0.3mm
• Full Travel: 0.6mm
• Life Span: 80 Million

Features

• The upper cover is fully transparent, the contacts are gold-plated, and the lower cover is pure black, which is easier to form a high degree of consistency with the PCB color, and can better reflect the ultimate minimalist style.
• Brand-new mold production, extremely low production tolerance, strict special adjustment control to ensure production consistency.
• The stepless microswitch adopts double gold-plated contacts, combined with the TTC dust plunger structure design to prevent double clicks.
